adapter sleeve

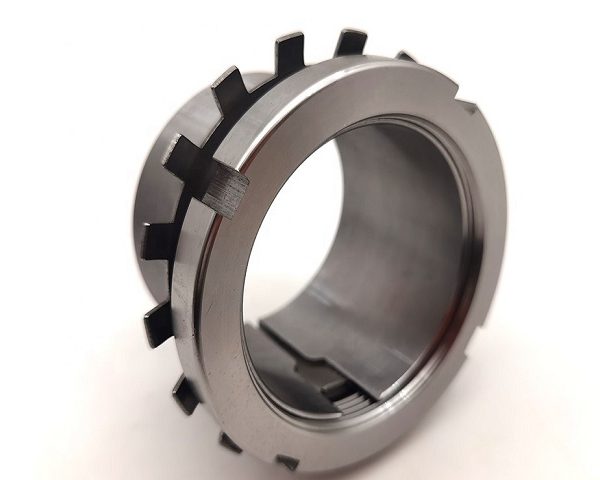

Adapter sleeve is a fastening unit to fix a tapered bore bearing onto a cylindrical shaft or stepped shaft. It consists of sleeve bushing, lock nut and lock washer.

What bearings does adapter sleeve work with?

Adapter sleeves work with bearings with a tapered bore, these bearings are normally marked “K” as suffix in their part numbers. “K” is common to see on self-aligning ball bearings and spherical roller bearings.

Benefits of bearing adapter sleeves:

• Locating bearing on shaft
• Make it easy when mounting and dismounting a bearing
• Adjust the internal clearance of a bearing in minimum range.

Main applications of adapter sleeves:

• Paper and pulp mill
• Steel plant
• Cement industry
• Mining machineries

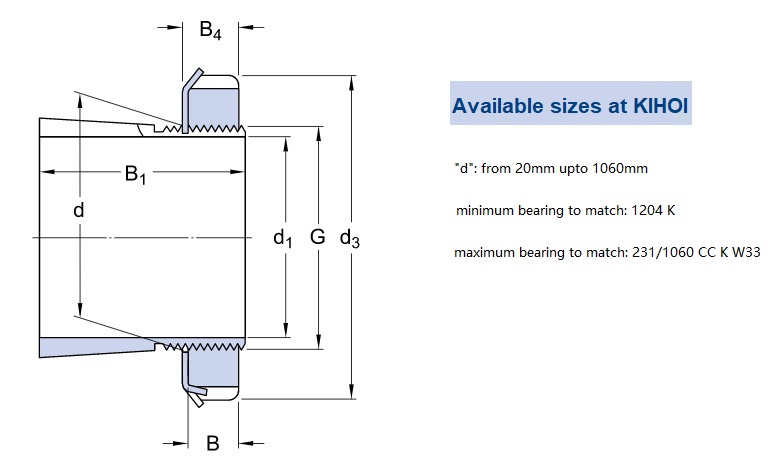

 KIHOI’s supplying range of adapter sleeves:

• H 2 series (H 204, H 205……H 222)
• H 3 series (H 304, H 305……H 322)
• H 23 series (H 2304, H 2305……H 2356)
• H 30 series (H 3024, H 3026……H 30/1060)
• H 31 series (H 3120, H 3122……H 31/1060)
• H 32 series (H 3260, H 3264……H 32/1000)
• H 39 series (H 3924, H 3926……H 39/1060)
• And inch series of HE, HA, SNW adapter sleeves.

ADAPTER SLEEVE CATALOGUE PDF
