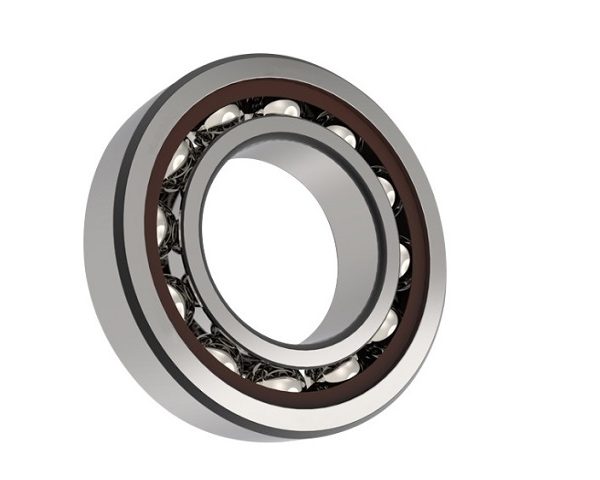

angular contact ball bearing

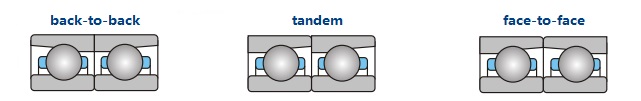

Angular contact ball bearings perform the highest speed capacity among all rolling bearings. They accommodate pure radial load and one-way axial load, in order to increase the combined axial load capacity, angular contact ball bearings are mounted in pairs in manner of face-to-face, back-to-back, or in tandem.

Features and benefits

• High speed
• Low noise
• Low friction
• Light and medium load capacity

Options at KIHOI

• Cage: steel, brass, glass fiber reinforce polyamide
• Sealing: contact seals, without seals
• Contact angle: 15°, 25°, 40°
• Precision grade: P0 (ABEC1), P4 (ABEC7), P2 (ABEC9),
• Pairs: DF, DB, DT

Available series and sizes

• Size range: bore 10mm~1000mm
• Series: 7000, 7200, 7300, 7400

ANGULAR CONTACT BALL BEARING CATALOGUE PDF
