CB14-1 CB14-2 CB14-3 CB14-4 CB14-5 CB14A-6 CB14A-7 CB14A-10 conveyor bearings

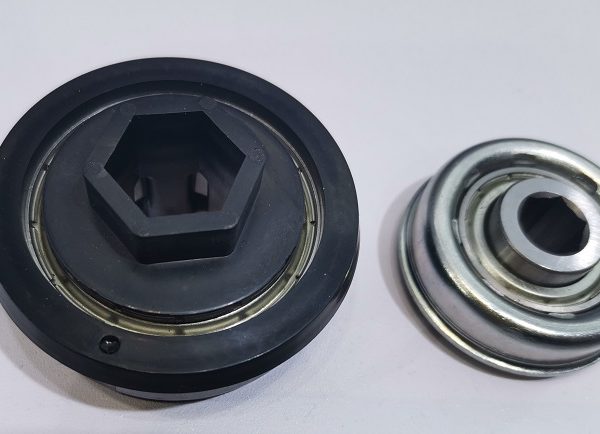

CB14 series conveyor ball bearings with nylon hex bore to reduce noise for conveyor systems
- Description
- Inquiry
Precision machined ball bearings CB14 with nylon bore to fit 7/16 hex rolling shaft.
CB14-1 conveyor bearing, hex bore 0.456″, outer diameter 1.469″, flange diameter 1.537″, width 0.712″
CB14-2 conveyor bearing, hex bore 0.456″, outer diameter 1.503″, flange diameter 1.574″, width 0.712″
CB14-3 conveyor bearing, hex bore 0.456″, outer diameter 1.529″, flange diameter 1.6″, width 0.712″
CB14-4 conveyor bearing, hex bore 0.456″, outer diameter 1.880″, flange diameter 1.951″, width 0.712″
CB14-5 conveyor bearing, hex bore 0.456″, outer diameter 1.603″, flange diameter 1.675″, width 0.712″
CB14A-6 conveyor bearing, hex bore 0.456″, outer diameter 1.712″, flange diameter 1.783″, width 0.52
CB14A-7 conveyor bearing, hex bore 0.456″, outer diameter 1.712″, without flange, width 0.52″
CB14A-10 conveyor bearing, hex bore 0.456″, outer diameter 1.628″, flange diameter 1.7″, width 0.52″
| Bearing聽Part Number | Hex Bore B (in) | Outer Diameter D (in) | 聽 Flange A (in) | 聽 聽 W (in) | 聽 聽 E (in) |
| CB14-1 | 0.466/0.456 | 1.469/1.464 | 1.537 | 0.712 | 0.372 |
| CB14-2 | 0.466/0.456 | 1.503/1.498 | 1.574 | 0.712 | 0.410 |
| CB14-3 | 0.466/0.456 | 1.529/1.524 | 1.600 | 0.712 | 0.410 |
| CB14-4 | 0.466/0.456 | 1.880/1.875 | 1.951 | 0.712 | 0.410 |
| CB14-5 | 0.466/0.456 | 1.603/1.598 | 1.675 | 0.712 | 0.410 |
| CB14A-6 | 0.466/0.456 | 1.712/1.707 | 1.783 | 0.520 | 0.410 |
| CB14A-7 | 0.466/0.456 | 1.712/1.707 | without | 0.520 | 0.472 |
| CB14A-10 | 0.466/0.456 | 1.628/1.623 | 1.700 | 0.520 | 0.410 |
Besides the standard KILIAN CB14 conveyor bearings with hex bore as of聽https://www.kilianbearings.com/products/catalog-bearings/cb14-conveyor-ball-bearings, we still produce CB14 series with a smaller nylon hex bore to fit for 5/16 hex driving shaft, as well as custom designed conveyor bearings with ceramic balls for operating speed above 3600 RPM.
KIHOI makes sealed type conveyor bearings to serve maintenance-free application as alternative of FRANTZ conveyor bearings ABEC-1 precision machined bearings stated by聽https://frantz-mfg.com. The quality RS sealed ball bearings work with a dischargeable polymer bore bushing in a machined housing, which are CB14-1 ABEC, CB14-2 ABEC, CB14-3 ABEC, CB14-4 ABEC, CB14-5 ABEC, CB14A-7 ABEC, CB14A-6 ABEC, CB14A-11 ABEC, CB14A-13 ABEC.
