rod end bearing

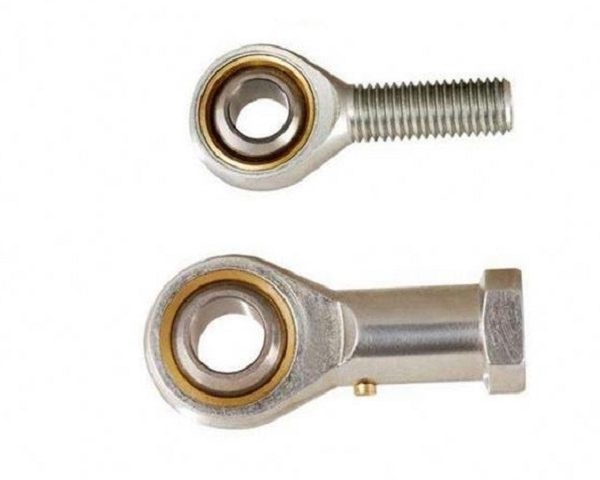

Rod end bearing comprises a spherical plain bearing embedded in the eye-shaped housing at one end while the other end machined in form of male or female screw.

Options of the rod ends

• Body material: 4130, 1045
• Thread: left hand, right hand
• Available further processes: phosphate, zinc plated
• Sealing of insert spherical plain bearing: open, rubber seal
• Maintenance: maintenance free, maintenance required
• Material of insert spherical plain bearing: steel/steel, steel/bronze, steel/PTFE, stainless steel/stainless steel
• Thread type: internal (female), external (male)

Available series and sizes:

• Bore sizes: from 5mm to 200mm
• SI series    SIA series     SA series     PHS series
• PHSA series    POS series    POSA series
• NHS series    NOS series
• SIL series   SILA series   SIKAC series    SILKAC series
• SIR series   SIJ series
• PF series    PM series

Served applications of rod ends

• Hydraulic cylinders
• Forging equipment
• Construction machinery
• Automatic industry
• Shock reducer
• Agricultural machine
