tapered roller bearing

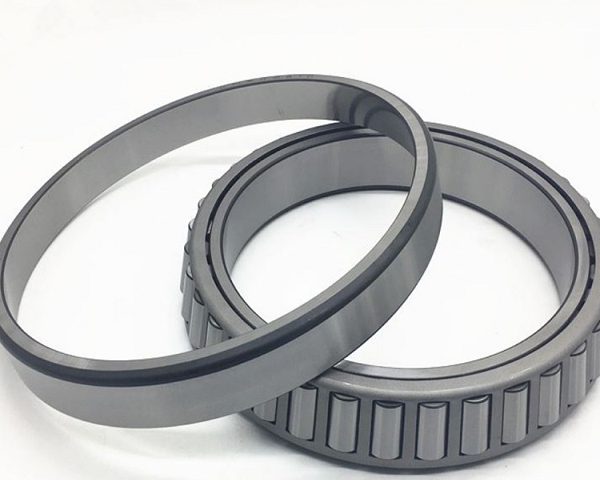

A single row tapered roller bearing consists of a cone and a cup. The tapered roller and cage are assembled with cone as an integration to match the cup.

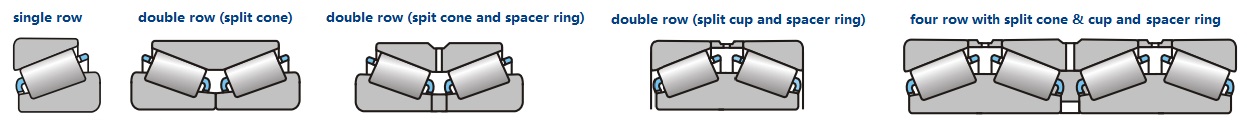

Tapered roller bearings are manufactured in structures of single row, double row and four rows.

Benefits and features

• Suitable for combined load (radial and direction)
• Perform under extreme environment condition and varying speed.
• Cup and Cone interchangeable.

Available series and sizes

Single row

• Metric size 30/31/32/33 series (bore 15mm~1800mm)
• Inch size L, LL, LM, JLM, JHM, JP, M, HM, H, HH series (bore 0.688”~33”)

Double row

• Metric size 35/32/31/37 series (bore 30mm~1600mm)
• Inch size L, M, LM, HM, EE series (bore 9.4488”~37”)

Four rows

• Metric size 38 series (bore 320mm~1060mm)
• Inch size L, M, LM, HM, EE series (bore 11.3189”~34.3642”)

Typical applications:

• Conveyor rolls
• Vehicle front wheels
• Trailer wheels
• Sheaves
• Agriculture
• Steel plant
• Paper mill
• Food processing machinery
• Construction equipment
